Grains Sorting & Cleaning Machine

Short Description:

This machine runs smoothly, with compact structure, low failure rate, large output, good effect, easy operation and excellent working environment! There is no breakage during processing, and it can be widely used in the selective processing of various crop seeds!


Product Detail

FAQ

Product Tags

Description:

This machine integrates non-crushing bucket elevator, front and rear double vertical Air-screen systems, double horizontal vortex dust removal, enlarged dust collector, widened and lengthened vibrating grader, and widened and lengthened specific gravity table. One processing can remove light impurities such as chaff, ash and glume in the seeds, and at the same time remove large impurities, small impurities, sloppy seeds, diseased seeds, mature seeds, etc.!
This machine runs smoothly, with compact structure, low failure rate, large output, good effect, easy operation and excellent working environment! There is no breakage during processing, and it can be widely used in the selective processing of various crop seeds!

→Specification:

Model 5XFZ-40M 5XFZ-40BSM
Size(Cm) 510*250*390 720*250*390
Power(Kw) 23 32
Voltage 380V 50Hz 380V 50Hz
Weight(Kg) 3750 4450
Capacity(Kg/h) 15000 15000
Grader sieve(Cm) 240*150 240*150
Gravity table(Cm) 190*195 190*195
Selected rate ≥99.5% ≥99.5%
Breakage Rate ≤0.2% ≤0.2%
Noise ≤70DB ≤70DB
Dust collector diameter(mm) 800 800
Cleaning precision ≥99.5% ≥99.5%
Production requirements Whole spraying process Whole spraying process
Note The specific gravity table can be pulled out and cleaned The specific gravity table can be pulled out and cleaned

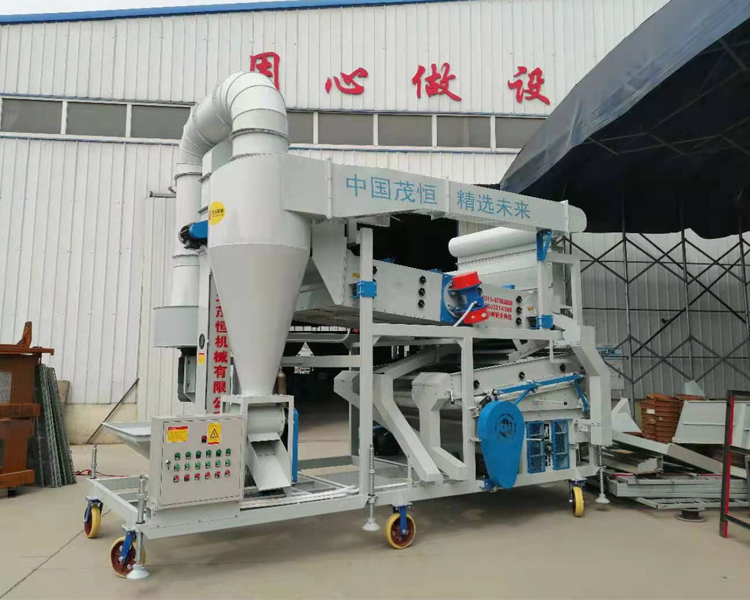

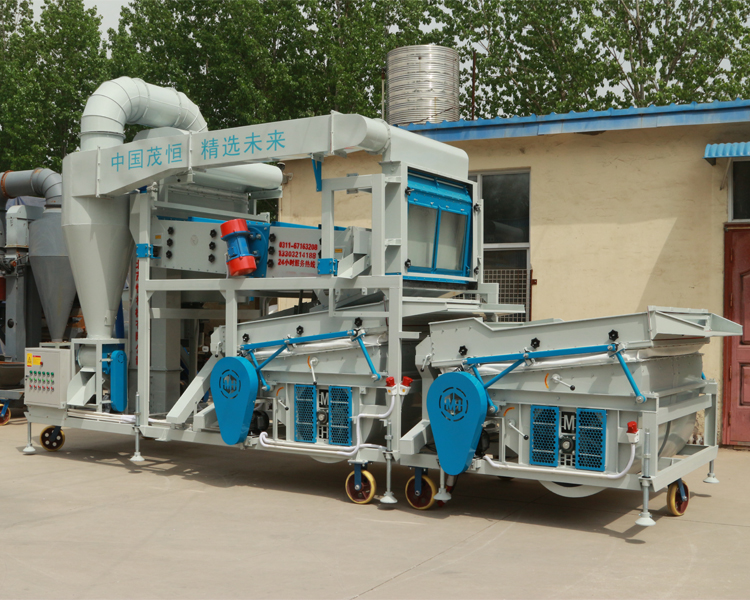

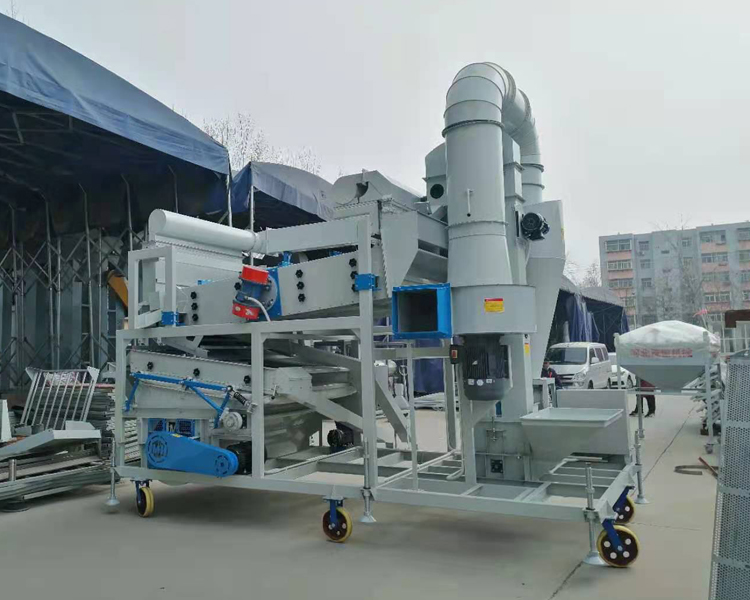

→Multi-angle display:

01 02 03

→Features:

1. Fully enclosed feeding, the working environment is significantly improved;

2. The bucket elevator configuration is 15 tons;

3. Dust collector 800mm diameter;

4. Front and rear double vertical Air-screen system;

5. The upper vibrating sieve is 1.5m wide and 2.4m meters long;

6. The specific gravity table is 1.95m meters wide and 1.9m meters long;

7. The specific gravity table can be pulled out, and it is more convenient to clean and replace the varieties;

8. Modular composition design, easy to move and easy to operate!

All technical parameters of this equipment are drawn from others’ strengths, and have their own characteristics. They are easy to use, practical and durable! ! !


  • Previous:
  • Next:

  • 1.Q:What is the seed/grain cleaning?

    A:This is the process of removing low quality, shriveled, mouldy seeds and different crop varieties from seeds or grains. Seed cleaning includes dust removal,specific gravity, grading, polishing, stone removal, color sorting, coating, packaging and weighing. Seed cleaning is a part of the seed industry, responsible for upgrading seeds and improving their planting conditions. This helps to improve the quality of the seeds, thus ensuring increased farm productivity.

    2.Q: Are you factory or trading company?

    A :We are professional manufacturer for grain cleaning equipment and we have 19 years of production and sales experience in the industry.

    3.Q: What do you need to know for fast communication and quotation?

    A: It would be highly appreciated if you can provide details of your processing material spics, capacity and efficiency request, sieve specification, motor power supply voltage and special brand needed, and other working conditions.

    4.Q:Can One Machines work on different seeds?

    A:We also use individualized, seed specific settings on our machines to limit unwanted scarification. We provide number screens to be fitted on single machinery to our work on different variety of seeds.

    5.Q: How long will the products be shipped to me?

    A:About 10 to 40 days by sea,depend on which country you are in and the type of machine and parts availability.

    6.Q: What is your payment terms?
    A: T/T, L/C, Western Union, Cash accepted.

    30% deposit with purchase order, 70% balance paid before shipment.

    7.Q: Can you make the machines as per our special requirement?
    A: Yes, OEM/ODM service available.

    8.Q: Where is your factory and how can I visit?

    A:The factory address:CN,Hebei,shijiazhuang,South of Nanxicun Village,ETDZ:

    From Guangzhou Baiyun international airport to Shijiazhuang international airport need about 3hours then drive to my factory(1hour)

    From Beijing Railway station to Shijiazhuang Railway station need about 2 hours,then drive to the factory (30 minutes)

    From Hongkong International airport to Shijiazhuang international airport need about 5 hours,then drive to the factory(1 hour).
    Q: What is your company after-sales service?

    A: Everey machine enjoy one year warranty. We will offer fully guidance on operation questions.And engineer online service available. Any parts problem happended during the warranty year, our company will offer you spares. After warranty, we help clients solve problem patiently as our repsonsibility.
